Product features: Use 0.1 micron MPPS testing instrument for performance testing, product quality is guaranteed; produced in a class 10,000 clean factory, no volatile dust; using high-quality HV filter material, stable efficiency, low resistance, long service life; small size, saving installation space; high strength, light weight, easy to install.
Performance parameters: filtration efficiency full efficiency test (0.1-0.2μm): 99.9995%; most penetrating particle size scanning method (MPPS), filtration grade: U15
Filter material: glass fiber filter paper
Frame: frosted aluminum profile
Dividers: hot melt glue
Working temperature: -20~70℃
Working humidity: ≤99%

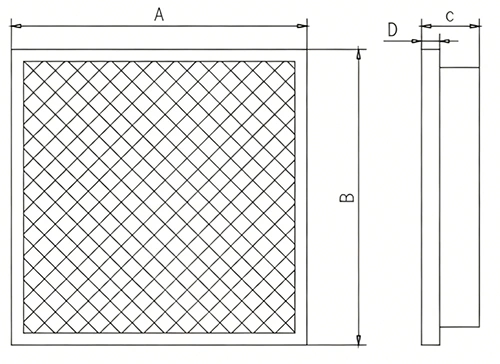

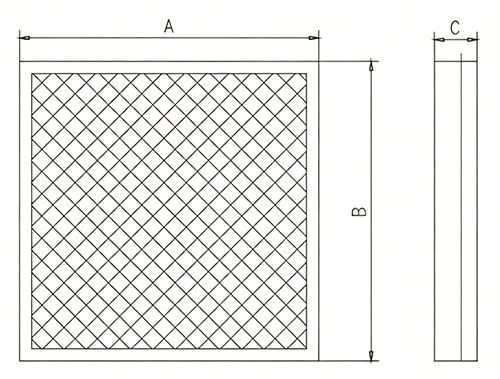

| Model | Outline dimensions (A*B*C) | D (mm) | Initial resistance | Rated air volume | |
| H13 | H14 | ||||
| BY-YC 320x320×95 | 320x320x95 | 19 | 150 | 160 | 300 |
| BY-YC 484x484×95 | 484×484x95 | 19 | 150 | 160 | 600 |
| BY-YC 630x630×95 | 630x630x95 | 19 | 150 | 160 | 1200 |
| BY-YC 610x610×95 | 610x610x95 | 19 | 150 | 160 | 1000 |
| BY-YC 915x610x95 | 915x610x95 | 19 | 150 | 160 | 2000 |
| BY-YC 400x400×95 | 400x400x95 | 19 | 190 | 220 | 500 |
| BY-YC 550x550x95 | 550x550x95 | 19 | 190 | 220 | 1000 |
| BY-YC 660x660x95 | 660x660x95 | 19 | 190 | 220 | 1500 |
| BY-YC 1220x610×95 | 1220x610x95 | 19 | 150 | 160 | 1500 |
Note: The above sizes are common specifications, other sizes can be customized and processed as required. The resistance value applies to the rated air volume: ±10% range.
