Using high-quality non-woven filter material, it can effectively intercept dust in the air, and its good channels allow air to pass freely, with low resistance and low energy consumption. The air outlet surface has been smoothed to prevent secondary pollution caused by fiber breakage and scattering.

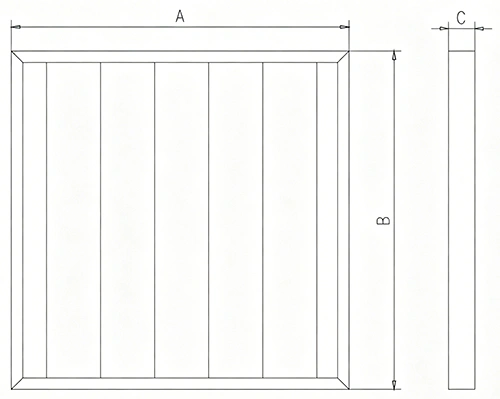

Model specifications | Outline dimensions mm (A*B*C) | Filtration efficiency | Filter area m | Rated air volume initial resistance m³/hPa |
BS-XP595*595*46-G3 | 595*595*46 | G3 | 1.15 | 3600|70 |
BS-XP290*595*46-G3 | 290*595*46 | G3 | 0.57 | 1800|70 |
BS-XP493*595*46-G3 | 493*595*46 | G3 | 0.73 | 3000|70 |
BS-XP610*610*46-G3 | 610*610*46 | G3 | 1.2 | 3600|70 |
BS-XP305*610*46-G3 | 305*610*46 | G3 | 0.6 | 1800|70 |
BS-XP595*595*96-G4 | 595*595*96 | G4 | 2.04 | 3600|60 |
BS-XP290*595*96-G4 | 290*595*96 | G4 | 1 | 1800|60 |
BS-XP493*595*96-G4 | 493*595*96 | G4 | 1.28 | 3000|60 |
BS-XP610*610*96-G4 | 610*610*96 | G4 | 2.1 | 3600|60 |
BS-XP305*610*96-G4 | 305*610*96 | G4 | 1.05 | 1800|60 |
BS plate filter has two filtration efficiencies, G3 and G4, corresponding to gravimetric efficiency of 80%~90% and colorimetric efficiency of 40%. Filters with this efficiency can be used for pre-filtration to protect downstream filters, or for simple air conditioning and ventilation systems that only require one-stage filtration.
