Laminar flow purification air supply ceiling

The purification air supply outlet is the end air purification processing unit of the purification air conditioning system. It is an air purification end treatment device specially designed and manufactured according to the purification and decoration requirements. It is suitable for various forms of ceiling installation such as aluminum gusset plates, color steel plates, aluminum plastic plates, electrolytic steel plates, etc.

Submit an inquiry Understand our manufacturing capabilities

WhatsApp Inquiry

Connect directly with our engineers

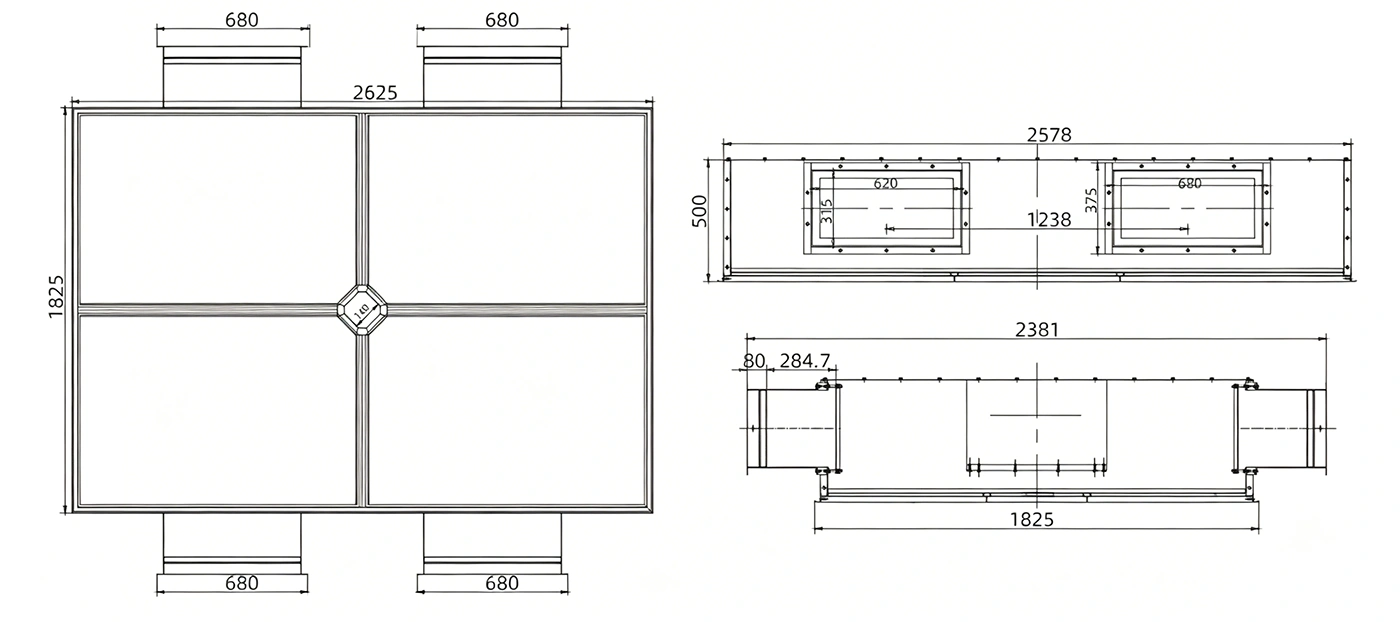

Schematic diagram of damping plate dimensions:

Replace the image background with white (1).webp

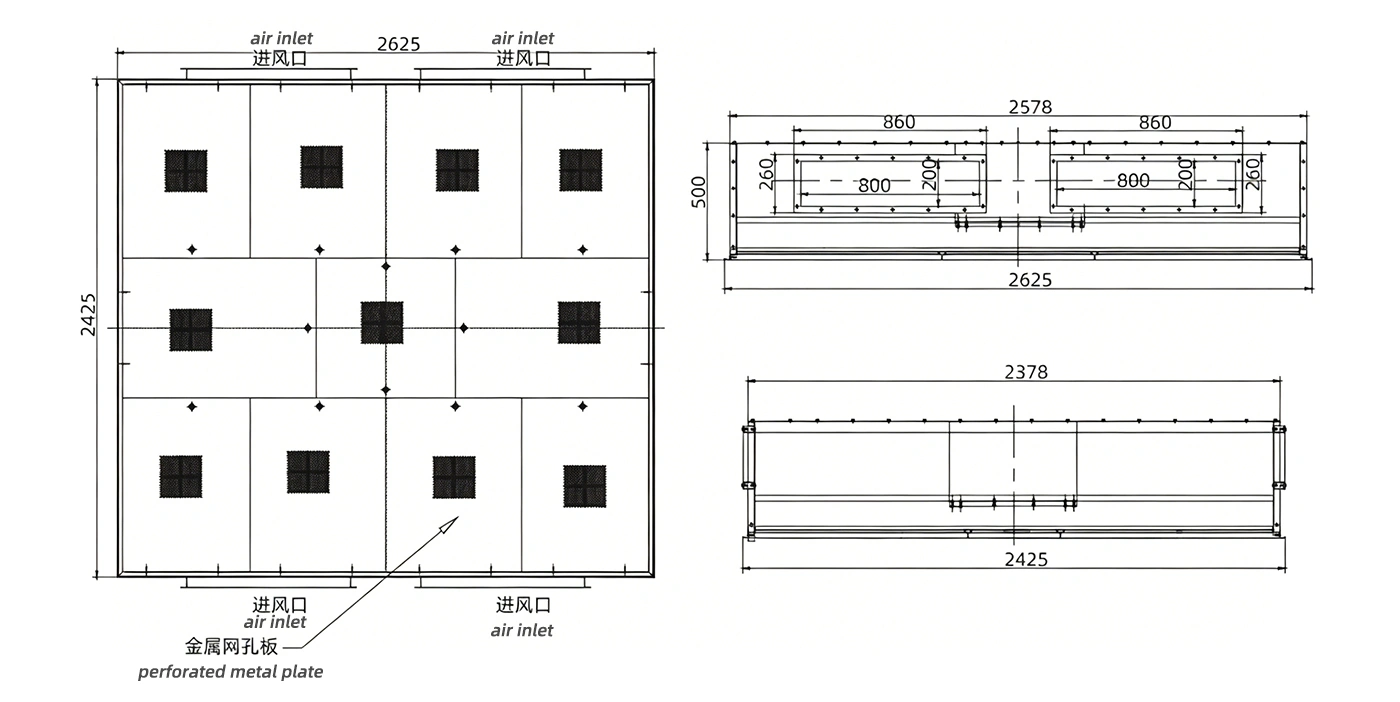

Schematic diagram of mesh plate dimensions:

Replace the picture background with white.webp

Product name	Specifications	Filter size	Outer frame size	Box size	Hole size
100-level static pressure box	26002400500	59680770	2625*2425	2578*2378	2600*2400
Thousand-level static pressure box	26001300500	610305292	2625*1825	2578*1778	2600*1800
10,000-level static pressure box	26001400 500	610305292	2625*1425	2578*1378	2600*1400
100-level air supply ceiling (damping net)	26002400500	59680770	262 5*2425	2578*2378	2600*2400
Thousand-level air supply ceiling (damping net)	26001300500	610305 292	2624*1825	2578*1778	26 00*1800
10,000-level air supply ceiling (damping net)	26001400500	610305292	2624*1425	2578 *1378	2600*1400
