Outer frame: galvanized steel plate; aluminum profile; stainless steel;
Separator: aluminum foil, dust-free double-adhesive paper
Product features: Produced in a class 10,000 clean factory, no volatile dust; using filter materials with excellent performance, high efficiency, low resistance, long service life; simple to manufacture and low price.
Performance parameters: Full efficiency test (0.3μm): H13≥99.97%, H14≥99.99%;
Filter material: glass fiber filter paper:
Working humidity: aluminum partition ≤99%, paper partition ≤85%
Working temperature: -20~90℃;

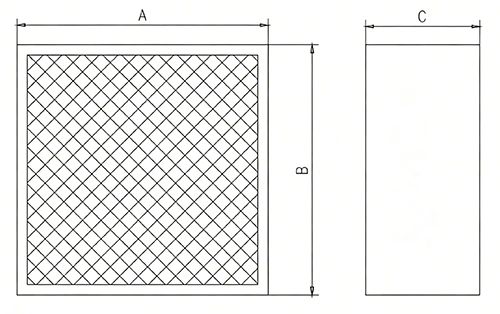

Model specifications | Dimensions (A*B*C) | Filtration efficiency | Rated Air volume | Recommended air volume | Initial resistance | Maximum safe resistance |
BY-YG 320*320*220 | 320*320*220 | 99.97% | 400 | 300-425 | 185 | 1200 |
BY-YG 484*484*220 | 484*484*220 | 99.97% | 1000 | 600-1000 | 190 | 1200 |
BY-YG 968*484*220 | 968*484*220 | 99.97% | 2000 | 1200-2000 | 185 | 1200 |
BY-Y G610*610*150 | 610*610*150 | 99.97% | 870 | 1000-1700 | 170 | 1200 |
BY-YG 915*610*150 | 915*610*150 | 99.97% | 1275 | 1500-2550 | 170 | 1200 |
BY-YG 1220*610*150 | 1220*610*150 | 99.97% | 1700 | 2000-3400 | 170 | 1200 |
BY-YG 630*630*220 | 630*630*220 | 99.97% | 1500 | 1000-1500 | 190 | 1200 |
BY-YG 945*630*220 | 945*630*220 | 99.97% | 2250 | 1500~2250 | 185 | 1200 |
BY-YG 1260*630*220 | 1260*630*220 | 99.97% | 3000 | 2000~3000 | 185 | 1200 |
BY-YG 305*610*292 | 305*610*292 | 99.97% | 850 | 500~850 | 170 | 1200 |
BY-YG 610*610,292 | 610*610*292 | 99.97% | 1700 | 1000-1700 | 170 | 1200 |
BY-YG 915*610*292 | 915*610*292 | 99.97% | 2550 | 150 0-2550 | 170 | 1200 |
BY-YG1220*610*292 | 1220*610*292 | 99.97% | 3400 | 2000-3400 | 170 | 1200 |
Note: The above sizes are common specifications, other sizes can be customized according to user requirements
